Kitchen Work Triangle Guide: Rules, Layouts, and Spacing

The kitchen work triangle is a foundational ergonomic design concept developed in the 1940s by the University of Illinois School of Architecture. Designed to maximize efficiency in residential kitchens, the triangle connects the three primary work stations: the sink (cleaning zone), the refrigerator (storage zone), and the cooktop/range (cooking zone). When these three points are spaced correctly, a home cook can move effortlessly between prep, cooking, and cleanup without unnecessary steps or aisle congestion.

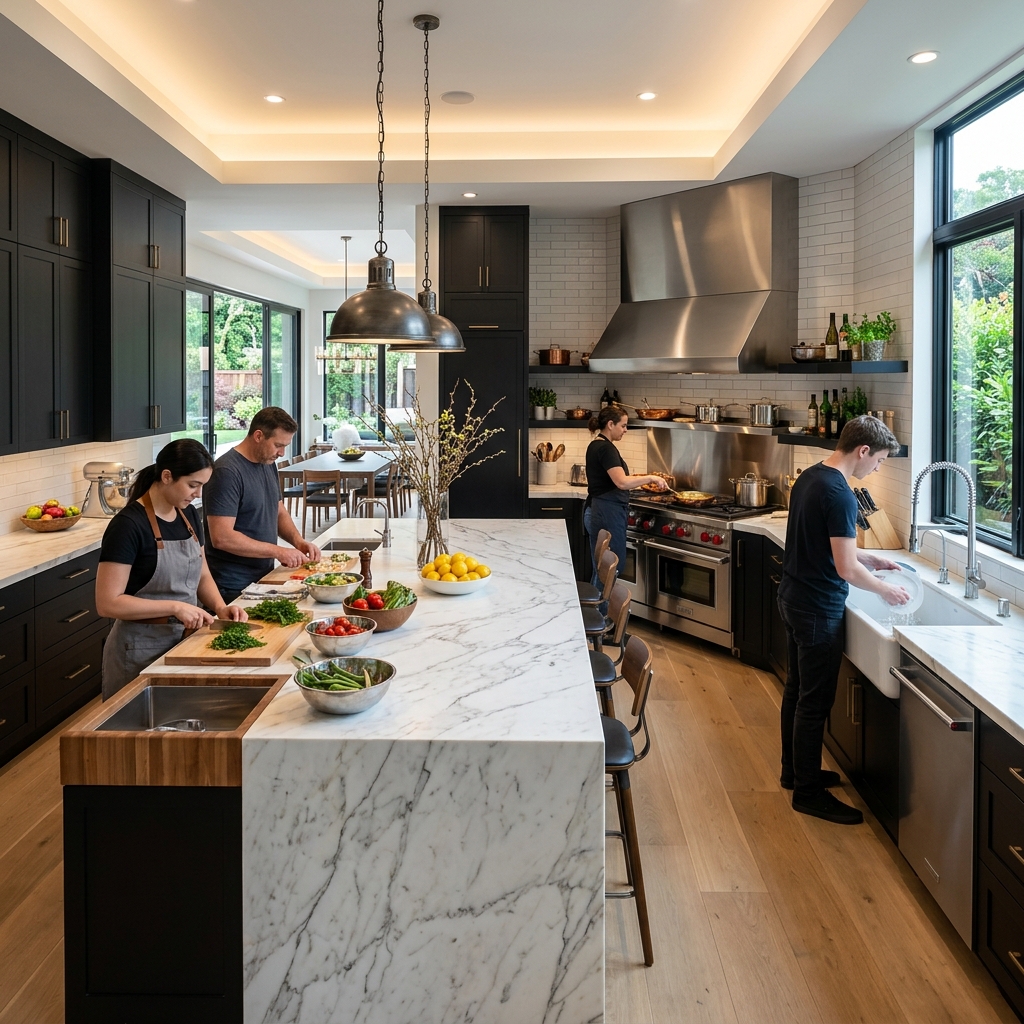

A Real Kitchen Remodel: Fixing a 26-Foot Triangle

In late 2025, a client in Denver remodeled a large 25-by-20 foot kitchen. The contractor placed the refrigerator on the far north wall, the sink on an island in the middle, and the commercial range on the far south wall. Walking between the fridge to grab vegetables, taking them to the sink to wash, and bringing them to the stove required walking a total triangle perimeter of 28 feet. Cooking a single meal required walking over half a mile back and forth across the kitchen. We relocated the refrigerator to the west wall, reducing total triangle perimeter to 18 feet and creating a frictionless prep workflow.

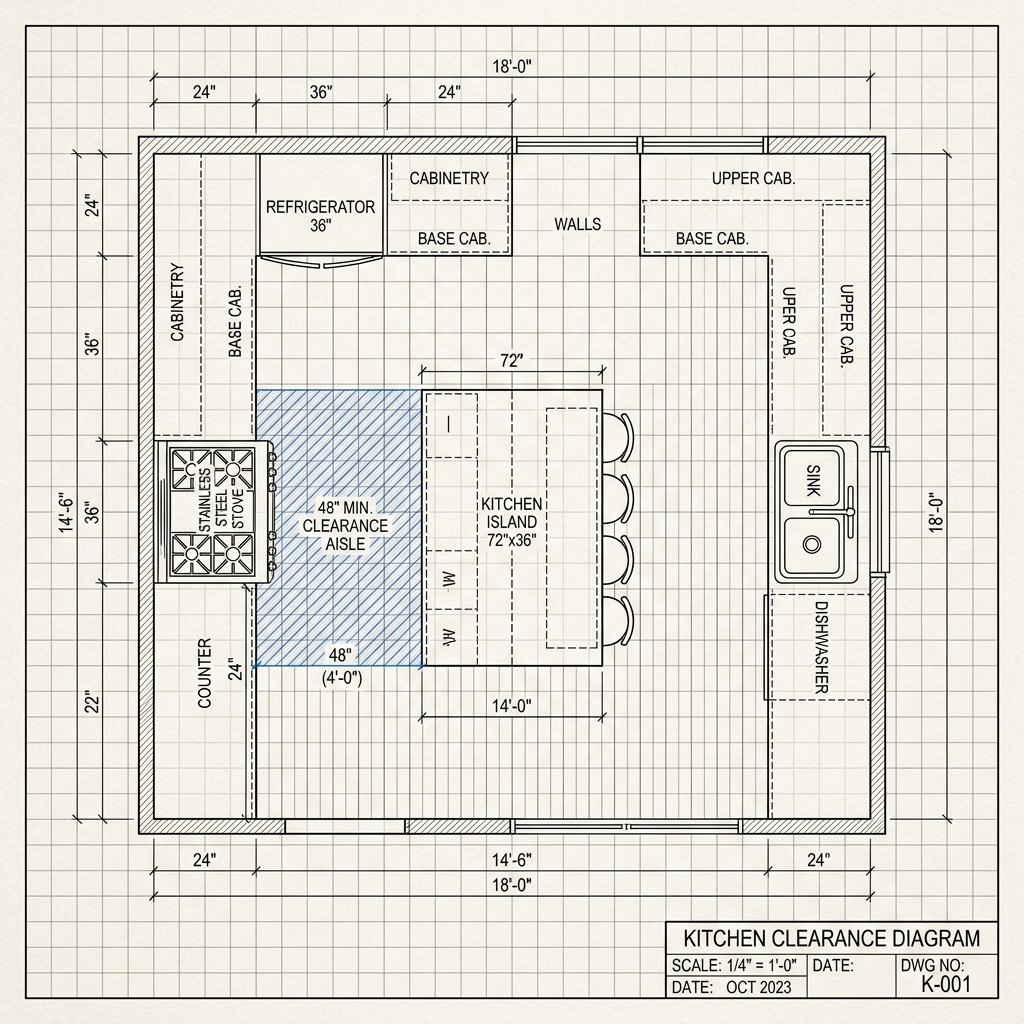

The Core Rules of the Kitchen Work Triangle

According to National Kitchen and Bath Association (NKBA) guidelines, a well-designed work triangle must adhere to these five dimensional constraints:

• Rule 1: Each leg of the triangle should measure between 4 feet (48 inches) and 9 feet (108 inches).
• Rule 2: The sum of all three legs combined should measure between 12 feet (144 inches) and 26 feet (312 inches).
• Rule 3: Major household traffic pathways should not cross through the work triangle.
• Rule 4: No full-height tall cabinets or kitchen island obstructions should intersect any leg of the triangle by more than 12 inches.
• Rule 5: Landing counter space must flank all three appliances (minimum 15 inches next to fridge, 18 inches next to sink, 12 inches next to stove).

Adapting the Triangle to Modern Open Kitchen Work Zones

In modern open-concept kitchens featuring multiple cooks, wine fridges, and prep sinks, the classic 3-point triangle often expands into dedicated ‘work zones’:

Prep Zone: Main sink, trash pull-out, chopping counter, and spice drawer.

Cooking Zone: Range, wall ovens, microwave, and utensil drawers.

Clean-up Zone: Main sink, dishwasher, dish drying rack, and plate storage.

Storage Zone: Refrigerator, pantry cabinets, and food storage containers.

Step-by-Step Work Triangle Planning Guide

Follow this guide to layout your kitchen work triangle:

• Step 1: Draw your kitchen floor plan to scale, noting fixed plumbing stacks and window locations.
• Step 2: Mark center points of your sink, range, and refrigerator.
• Step 3: Connect points with straight lines and measure exact distances using a tape measure or CAD tool.
• Step 4: Verify that each leg is between 4 and 9 feet, and total perimeter is under 26 feet.
• Step 5: Check walk aisle clearances: ensure minimum 42 inches for single-cook kitchens, or 48 inches for two-cook kitchens.

Common Work Triangle Errors

Avoid these four mistakes when planning your kitchen layout:

• Placing the island in the middle of the triangle: Forcing cooks to walk around a center island to reach the fridge breaks workflow.
• Crowding the range against a side wall: Placing a cooktop tight against a wall leaves zero landing space for hot pan handles.
• Blocking refrigerator door swing: Installing a fridge next to a deep wall casing that prevents the door from opening past 90 degrees.
• Putting dishwasher between sink and stove: Opening the dishwasher door while cooking creates an dangerous tripping hazard.

Frequently Asked Questions About Kitchen Triangles

Does a galley kitchen have a work triangle?

Yes. In a galley kitchen, place the sink and range on one wall and the refrigerator on the opposite wall to create a tight, highly efficient triangle.

How wide should walkways around a kitchen island be?

Walk aisles should be at least 42 inches wide for single-cook spaces and 48 inches wide for multi-cook households.

What if my kitchen is too small for a 12-foot triangle?

In compact urban apartments, work triangles under 12 feet are acceptable as long as appliances have at least 15 inches of landing counter space between them.

Professional Trade Best Practices and Environmental Considerations

Building codes and environmental conditions dictate how long interior materials remain functional. Environmental factors like relative humidity shifts, thermal expansion coefficient, subfloor moisture vapor emission rates, and structural deflection play massive roles in project longevity. Professional contractors always test ambient indoor air conditions using digital moisture meters and thermo-hygrometers prior to unloading finish materials on site.

Acclimation is a mandatory requirement for all wood, laminate, and luxury vinyl flooring products. Store boxed materials inside the climate-controlled installation space for a minimum of 48 to 72 hours prior to opening packages. This allows internal moisture content to balance with home HVAC operating levels, preventing post-installation board buckling or joint gaps.

Detailed Tool Checklist and Equipment Safety

Working efficiently requires gathering appropriate safety gear and specialized trade tools before starting construction. Always wear ANSI-approved eye protection, N95 dust respirators when cutting masonry or drywall, and heavy-duty knee pads during floor installations. Keep a calibrated 4-foot spirit level, laser measuring tool, steel square, and chalk line on hand for layout accuracy.

• Personal Protective Equipment: N95 respirators, hearing protection, safety glasses, cut-resistant gloves.
• Layout Tools: 4-foot spirit level, laser distance meter, framing square, blue chalk reel.
• Cutting Tools: Miter saw with carbide finish blade, oscillating multi-tool, utility knife with fresh blades.
• Surface Prep Tools: Floor scraper, margin trowel, heavy-duty mixing paddle, shop vacuum with HEPA filter.

What building codes govern residential interior renovations?

Residential renovations are governed by the International Residential Code (IRC) alongside local municipal amendments. Key code enforcement areas include structural joist span limits, stairway riser heights, egress window dimensions, and electrical GFCI/AFCI breaker requirements.

How can I check if a contractor is properly licensed and insured?

Always request a copy of the contractor’s state license number and Certificate of Insurance (COI) listing general liability and workers’ compensation coverage. Verify license standing directly on your state department of professional regulation portal.

Professional Installation Standards and Material Science

Understanding the material science behind interior building components prevents premature failure. Every building material, from ceramic tile thinset and gypsum drywall to natural hardwood flooring and composite decking, has a specific thermal expansion coefficient and equilibrium moisture content. When indoor humidity fluctuates between seasonal extremes (dry winter heating versus humid summer air), un-acclimated materials undergo dimensional change.

For interior wood products, relative humidity must be maintained between 35 percent and 55 percent at a temperature range of 60 to 80 degrees Fahrenheit. Leaving wood flooring or cabinet components in an unheated garage or damp basement prior to installation causes warping, board cupping, and joint separation after installation.

Comprehensive Field Tool Checklist and Job Site Setup

Executing clean installation work requires assembling high-quality trade tools before beginning demolition or layout. Standard DIY toolkits often lack the precision required for tight tolerances. Invest in a 48-inch spirit level, a digital angle gauge, laser distance measure, carbide-tipped cutting blades, and heavy-duty surface protection film.

• Surface Preparation: Heavy-duty floor scrapers, self-leveling compound mixing barrels, margin trowels, and industrial shop vacuums.
• Precision Measurement: Digital calipers, laser levels, stud finders with deep scan modes, and steel framing squares.
• Cutting Equipment: Dual-bevel sliding miter saws, continuous-rim diamond wet saws, and oscillating multi-tools.
• Safety Equipment: N95 particulate respirators, ANSI-approved eye protection, and heavy-duty knee protection pads.

Building Code Compliance and Inspection Readiness

All major residential remodeling projects must comply with the International Residential Code (IRC) and local municipal amendments. Inspections typically occur at three key project stages: rough framing/structural, rough plumbing/electrical/mechanical, and final occupancy sign-off. Skipping permits or failing to schedule inspections can lead to stop-work orders, fines, or issues when selling your property.

How do I know if my project requires a building permit?

Cosmetic updates like painting, hanging curtains, or installing floating floors generally do not require permits. Structural wall removal, electrical circuit additions, plumbing line relocations, and exterior deck builds require municipal permits and inspections.

What is the best way to clean and maintain finished surfaces?

Use pH-neutral cleaners specifically formulated for your material type. Avoid harsh bleach, ammonia, or abrasive scrubbing pads on finished hardwood, natural stone tile, or acrylic bath surfaces.
